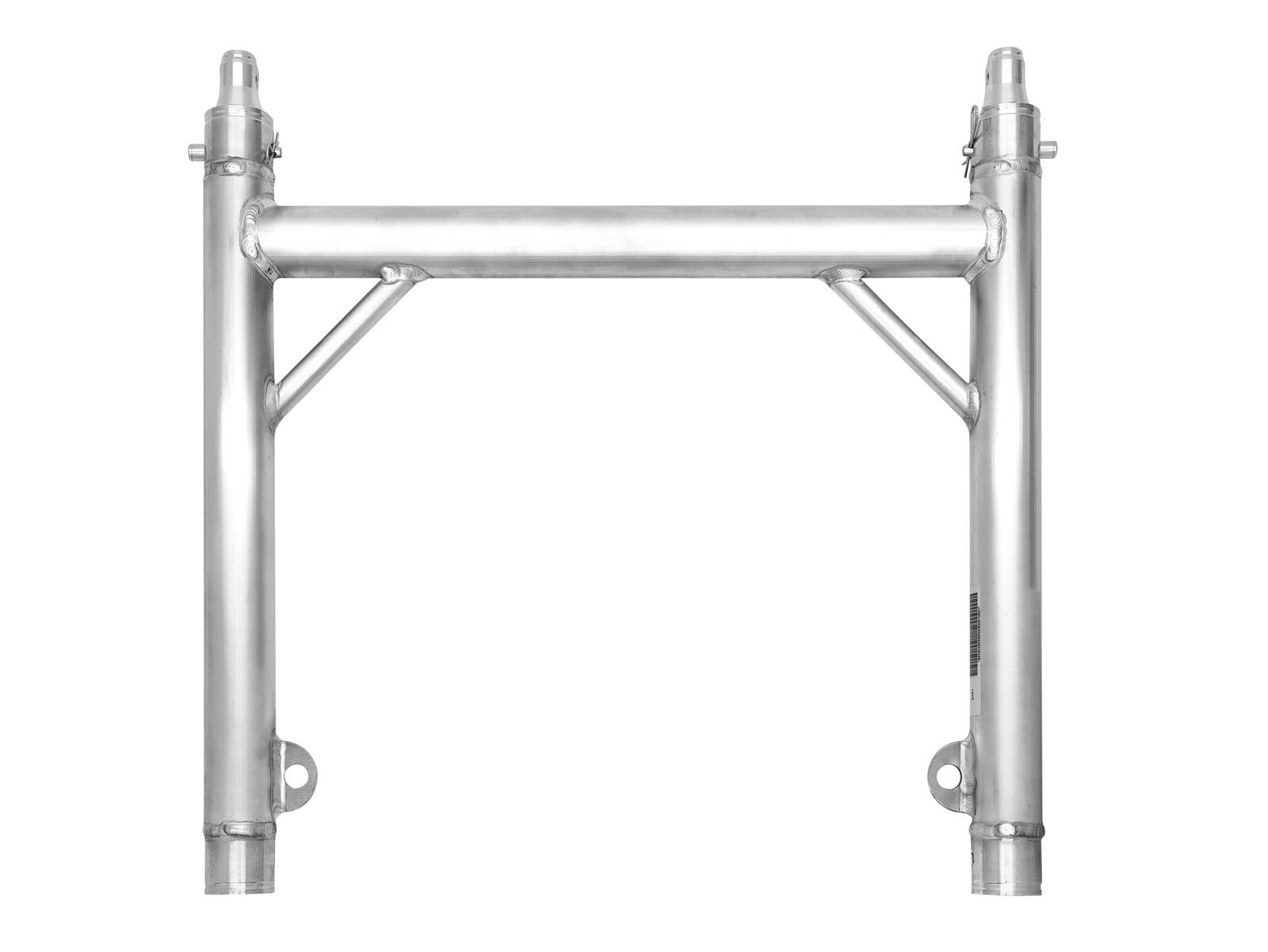

Alutruss U-Frame Base Part

Tubo individual with QUICK-LOCK,The number of U-frames that can be used is the sum of the net weights of the U-frames plus any added loads and must not exceed the carrying capacity of the U-frame top section (60320351) Each frame must be connected at two points to the frame above it with the enclosed connectors A frame must be secured by the two eyelets welded to the side tubes The drop distance should be less than 10 cm Use sufficiently sized steel cables or chains as securing means Capacidad de carga of a U-frame: point load 100 kg Strong EN-AW 6082 alloy for high loads Tubo truss: 50 mm Fabricado en Europa Para aplicaciones como: Escenario
