No disponible
Ahora mismo no tenemos unidad para probar ni stock para recoger. Te ahorramos el viaje.
Precios con IVA incluido
- Módulo Eurorack
- Filtro multimodo analógico (12 dB / Oct.)
- Controles manuales para nivel de entrada
- Frecuencia de filtro (afinación gruesa y fina) Ver descripción completa
Características
Módulo para sintetizador modular
- Módulo Eurorack
- Filtro multimodo analógico (12 dB / Oct.)
- Controles manuales para nivel de entrada
- Frecuencia de filtro (afinación gruesa y fina)
- Resonancia y frecuencia 'notch'
- Dos entradas CV para frecuencia de filtro (con atenuadores)
- Entrada CV para resonancia (con atenuador)
- Modo limitador conmutable para ajustes de alta resonancia
- Salidas de señal para paso bajo, paso banda, paso alto y 'notch'
- Consumo de corriente: 55 mA (+12 V) / 45 mA (-12 V)
- Anchura: 16 HP
- Profundidad: 43 mm
Product Features
Modular Synthesis
The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

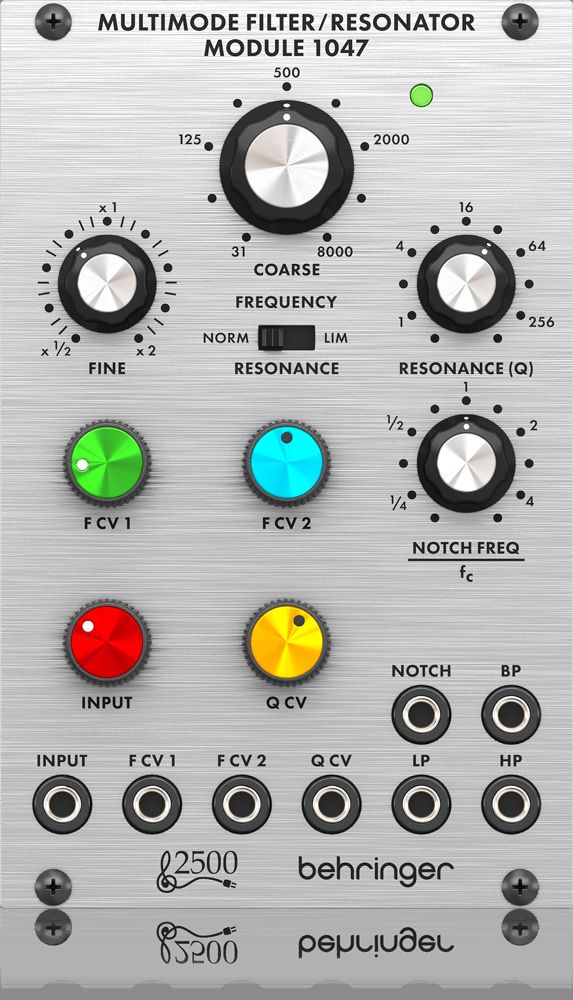

MULTIMODE FILTER/RESONATOR MODULE 1047
This is the Behringer 2500 series MULTIMODE FILTER/RESONATOR MODULE 1047. An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the MULTIMODE FILTER/RESONATOR MODULE 1047 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
MULTIMODE FILTER RESONATOR
The MULTIMODE FILTER/RESONATOR MODULE 1047 is a classic voltage controlled 12 dB per octave state variable filter, the filter is a matched transistor design for a vintage sound. The 1047 filter is equipped with a coarse and fine filter frequency controls, a resonance (Q) control which acts on all 4 filter outputs, a resonance limit switch prevents signal overload when high levels of resonance are used, the notch frequency/fc control allows the notch frequency to be adjusted up or down from fc as set by the frequency controls, 2 summed frequency CV attenuators and a resonance (Q) CV attenuator for maximum flexibility, the signal input is also equipped with an attenuator. All this gives you endless possibilities of filter curve shape to create the ultimate sound.
Comprar Behringer Multimode Filter / Resonator 1047 Modulo Eurorack
Ref. 0720-ABZ86-001-0
